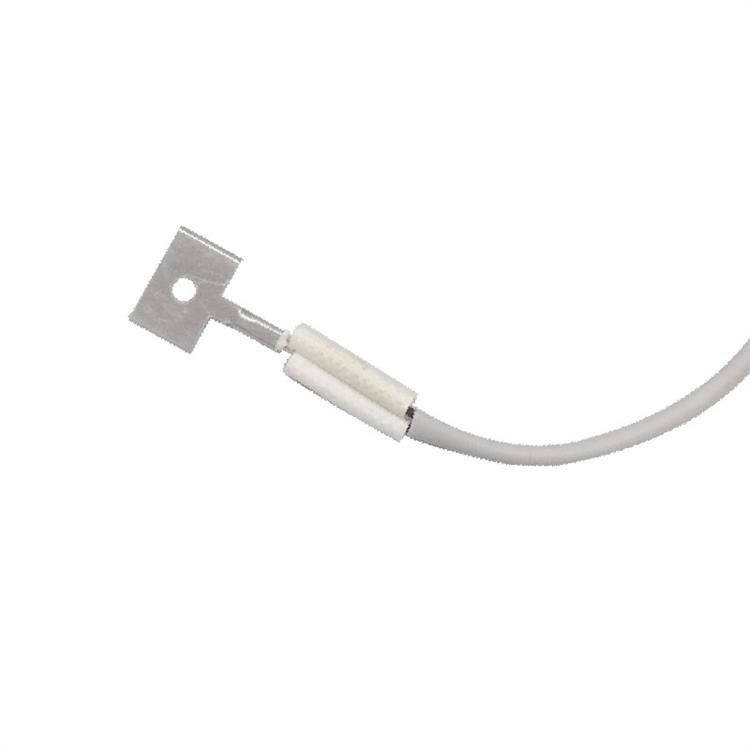

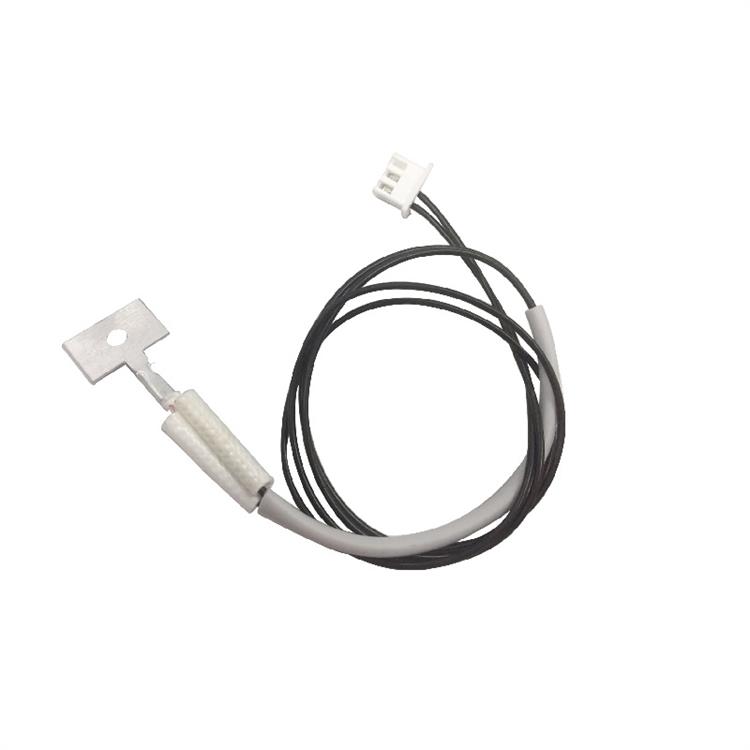

Dedicated to ovens Excellent stability Reliable temperature sensor

Availability:
Quantity:

Features:


1.High temperature resistance
2.Glass encapsulated thermistor
3.High temperature teflon wire
4.Good stability and high reliability
5.customized of various parameters and dimensions is welcome.

6.Operating temperature range:-40℃~250℃



Applications:


1.Oven
2.Microwave oven
3.High temperature resistant environment
4.Smart home appliances

Product Parameters:


1.Thermal reaction time:≤16 seconeds in water bath
2.Dissipation factor: about 2.6mW/℃ in standing air
3.Withstand voltage test:AC 2100V 2mA 1 second
4. Insulation test:≥100MΩ
5. Rated power:≤10mW


IMG_257NTC-Temperature-Sensor,thermistor-for-Oven-d2


Dimensions:


 NTC-Temperature-Sensor,thermistor-for-Oven-d1




Please inform the following parameters when ordering NTC temperature sensor:


1、Resistance value requirements (can be selected according to the above table)
2、B value requirements (can be selected according to the above table)
3、Working environment (whether waterproof, moisture-proof, cold and other requirements )
4. Application: different usgae has different temperature resistant wire and different resistance value
5. Operating temperature range
6. Accuracy requirement (1%-5% optional)
7. Shell material (copper, brass, stainless steel, ABS, epoxy resin and so on)
8. Customized shell dimensions is welcome
9. Customized wire rod and length is welcome
10. If connectors are needed at the end of the wire(Molex, JST, CJT and others are optional).
We are a professional manufacturer of NTC thermistors and temperature sensors. The products involve
many parameters and specifications, please confirm before place an order.
