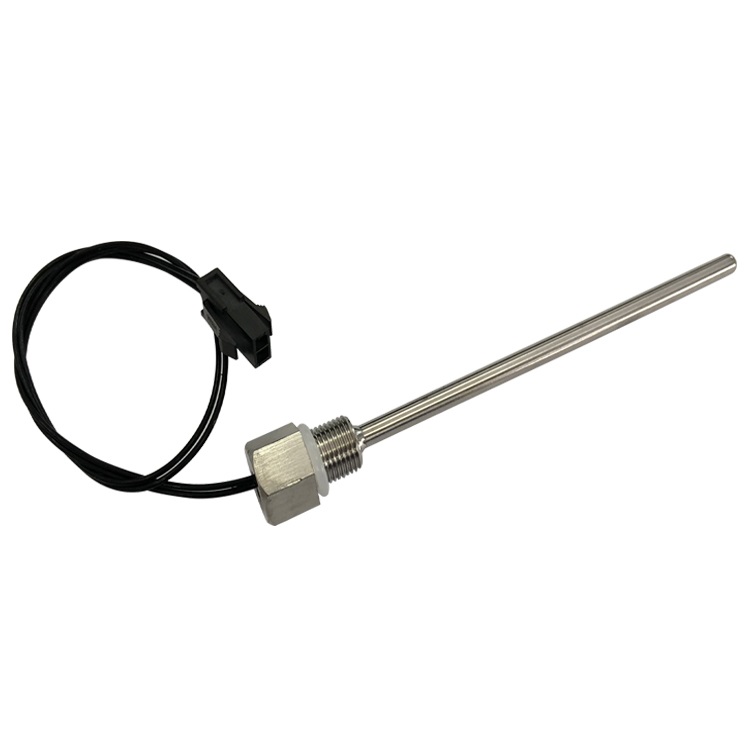

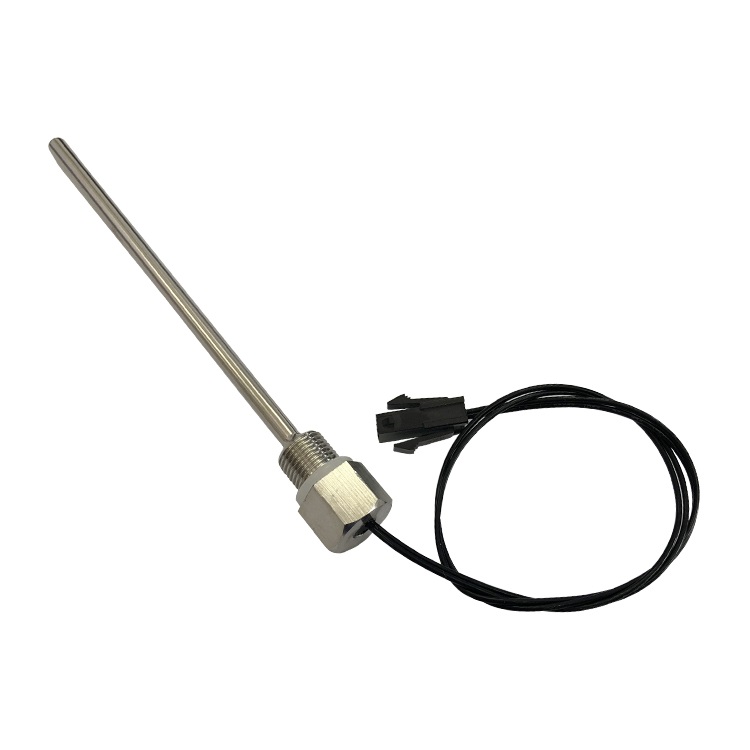

Features:
1.Compact structure, simple installation, good water proofing property
2.R25:1KΩ~500KΩ,B value: 2800K~4700K
3.High accuracy both resistance and B value:1%~3%
4.Small size,fast reaction,good insulation and high reliability
Applications:
1.Coffee machine
2.Electric rice cooker, oven, water heater, heater, freezer, water dispenser
3.Disinfection cabinet, washing machine, soybean milk machine, air conditioner, frequency converter
4.Induction cooker, microwave oven, washing machine, fan
Dimensions:
Product Characteristic Parameters:
1.Thermal reaction time: up to 12 seconds in water bath
2.Dissipation factor: about 1.6mW/℃ in standing air
3.Withstand voltage test: AC 1800V 2mA 1 second
4.Insulation test：≥100MΩ
5.Rated power: 5mW
6.Operating temperature range：-30℃～150℃
NTC temperature sensor type:
Ordering Instructions：
Please inform the following parameters when ordering NTC temperature sensor:
1. Resistance value requirements (can be selected according to the above table)
2. B value requirements (can be selected according to the above table)
3. Working environment (whether waterproof, moisture-proof, cold and other requirements )
4. Application: different usgae has different temperature resistant wire and different resistance value
5. Operating temperature range
6. Accuracy requirement (1%-5% optional)
7. Shell material (copper, brass, stainless steel, ABS, epoxy resin and so on)
8. Customized shell dimensions is welcome
9. Customized wire rod and length is welcome
10. If connectors are needed at the end of the wire(Molex, JST, CJT and others are optional).
We are professional manufacturer of NTC thermistors and temperature sensors. The products are
including many parameters and specifications, please confim before ordering. Customized parameters and dimensions is welcome.
RT table of conventional resistance values：
