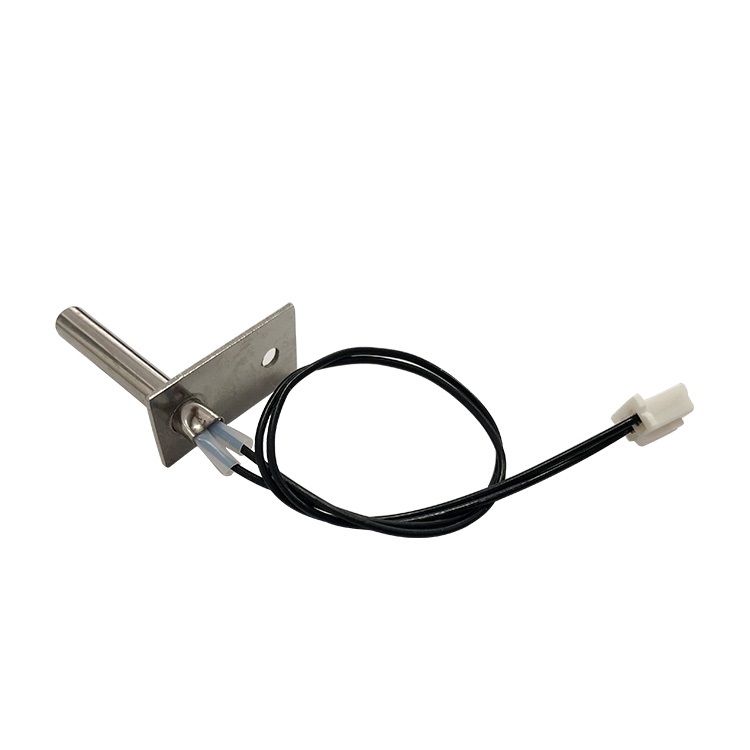

Custom High Accuracy Insulation Temperature Sensor for Rice Cooker/Water Heater/Refrigerator/Water Dispenser/Frequency Converter/Induction Cooker/Fan 1.High accuracy, good consistency and interchangeable resistance value and B value
2.Good insulation, high reliability, quick response
3.Adopt double-layer sealing process with good insulation sealing, mechanical impact resistance, bending resistance and high reliability.
4.Can work stably for a long time (annual resistance drift rate ≤1‰)
5.Can be encapsulated according to the use of installation conditions.
Application
1.Rice cooker
2.Oven, water heater, warmer, refrigerator,
3.Water dispenser,disinfection cabinet,washing machine,soybean milk machine,air conditioner,frequency converter
4.Induction cooker,microwave oven,fan
Dimensions
Product Parameters
Parameter Characteristics
1.Thermal reaction time: ≤16 seconds in water bath
2.Dissipation factor: about 2.6mW/℃ in standing air
3.Withstand voltage test:AC 1300V 2mA 1 second
4.Insulation test: DC 500V ≥100MΩ
5.Rated power: ≤10mW
6.Operating temperature range: -40℃～200℃
Ordering Instructions
RT table of conventional resistance values
