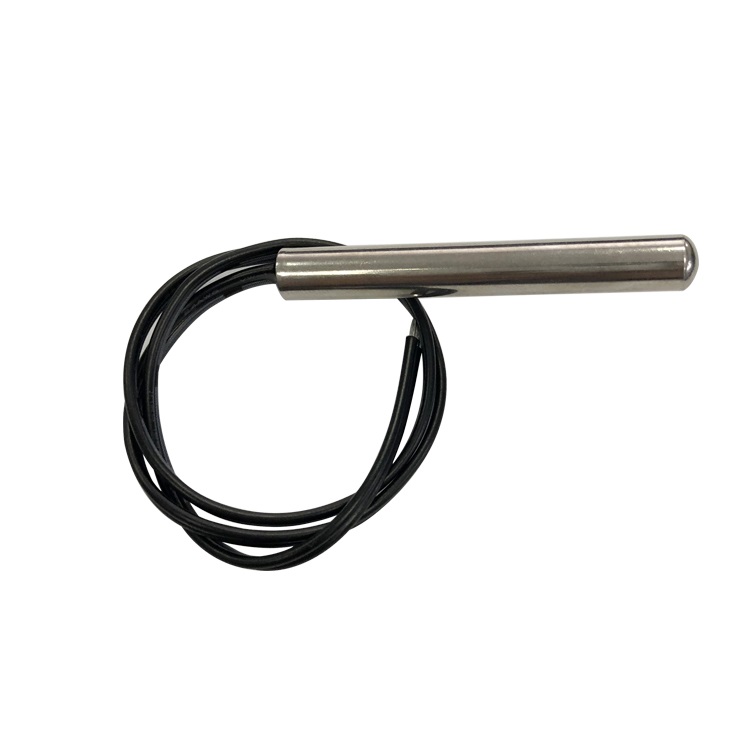

1.JPTF series products are NTC thermistor temperature sensor
2. Wide-range resistance value: 1KΩ~500KΩ
3. High accuracy
4. Consistency is good
5. The resistance value and B value can be interchanged
6. Good insulating properties
7.High reliability
8. Responsive fast
9. Double sealing process
10. Good insulation and sealing performance
11. Resistance to mechanical shock
12. Bending resistance
13.High reliability
14. It can work stably for a long time (annual resistance drift rate ≤ 1‰)
15. It can be packaged according to the installation conditions.
| Quantity: |
|---|
Features:
1.JPTF series products are NTC thermistor temperature sensor
2. Wide-range resistance value: 1KΩ~500KΩ
3. High accuracy
4. Consistency is good
5. The resistance value and B value can be interchanged
6. Good insulating properties
7.High reliability
8. Responsive fast
9. Double sealing process
10. Good insulation and sealing performance
11. Resistance to mechanical shock
12. Bending resistance
13.High reliability
14. It can work stably for a long time (annual resistance drift rate ≤ 1‰)
15. It can be packaged according to the installation conditions.
Applications:
1. Thermal insulation box
2. Air conditioner
3. Heating Equipment
4.Medical equipment
5. Thermostat
6. E-gifts
7.LED Shower
8. Temperature monitoring for home appliances
9. Electronic thermohygrometer
10. Automotive temperature measurement
11. Electronic calendar
12. Rechargeable Battery Packs
13. Wireless chargers
14. Notebook battery
15. The computer
16. Grooming products
17. Digital instrument
18. Lithium batteries
19. Switching power
20. Adaptor
21. LED Power
22.LED driver
23. The fan
24. Desktop PC Exhaust Fan
25. The alarm
Dimensions:
Parameter Characteristics：
1. Thermal response time: ≤16 seconds in water bath
2. Dissipation factor: about 2.0mW/°C in static air
3. Withstand voltage test: 2mA for 1 second, no abnormal phenomena such as flashover and breakdown of the steel ball
4. Insulation test: ≥ 100MΩ
5. Rated power: ≤ 10mW
6. Working temperature range: -30°C～105°C
Ordering Instructions：
Please inform the following parameters when ordering NTC temperature sensor:
1. Resistance value requirements (can be selected according to the above table)
2. B value requirements (can be selected according to the above table)
3. Working environment (whether waterproof, moisture-proof, cold and other requirements )
4. Application: different usgae has different temperature resistant wire and different resistance value
5. Operating temperature range
6. Accuracy requirement (1%-5% optional)
7. Shell material (copper, brass, stainless steel, ABS, epoxy resin and so on)
8. Customized shell dimensions is welcome
9. Customized wire rod and length is welcome
10. If connectors are needed at the end of the wire(Molex, JST, CJT and others are optional).
We are professional manufacturer of NTC thermistors and temperature sensors. The products are
including many parameters and specifications, please confim before ordering. Customized parameters and dimensions is welcome.
RT table of conventional resistance values：
