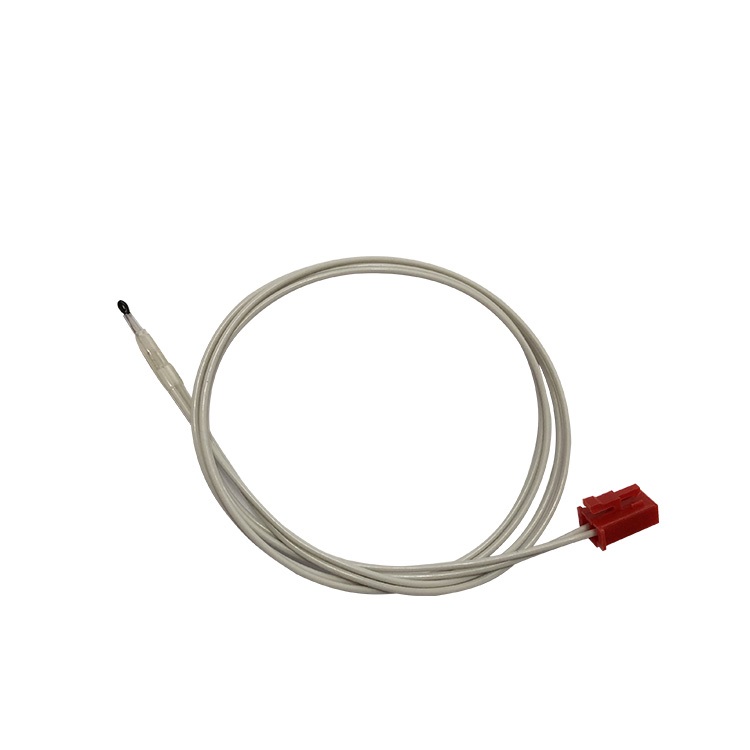

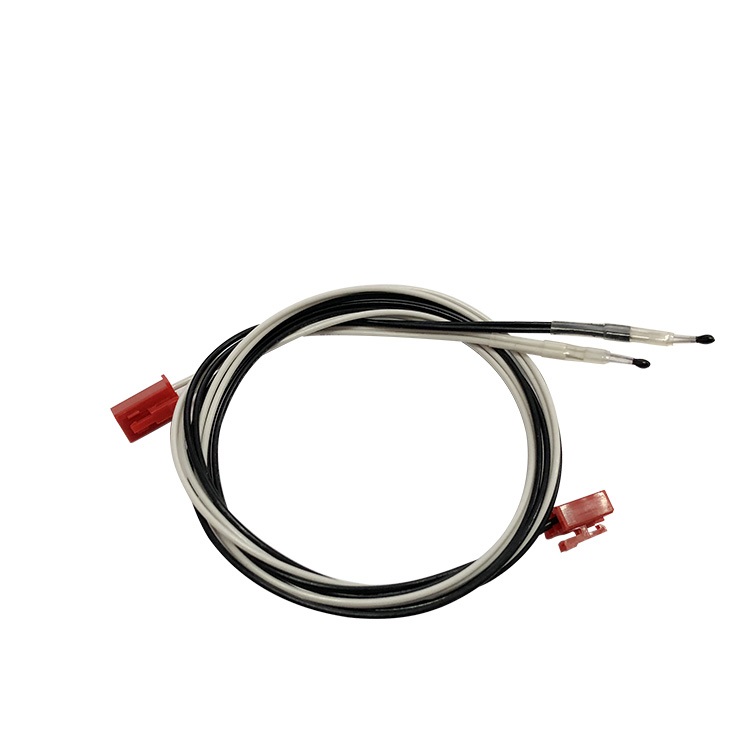

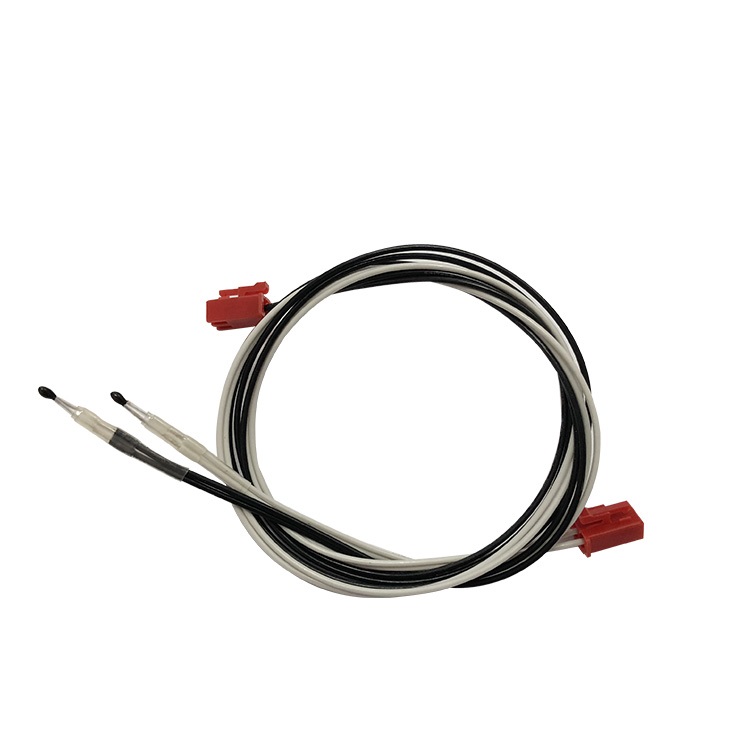

Features:
1.Teflon tube
2.Wide range of resistance values:1KΩ~500KΩ
3.High accuracy, good consistency and interchangeable resistance value and B value
4.Good insulation, high reliability, quick response
Applications:
1.Steam boiler, hot water boiler
2.Home appliances, rice cookers, heaters, automobile
3.Electric automobile, soybean milk machine, coffee maker, soybean milk machine, coffee maker
4.Burning machine, dishwasher, sterilizer,washing machine
5.Automotive temperature control system, medical equipment, new temperature measurement, communication equipment
| Quantity: |
|---|
Features:
1.Teflon tube
2.Wide range of resistance values:1KΩ~500KΩ
3.High accuracy, good consistency and interchangeable resistance value and B value
4.Good insulation, high reliability, quick response
Applications:
1.Steam boiler, hot water boiler
2.Home appliances, rice cookers, heaters, automobile
3.Electric automobile, soybean milk machine, coffee maker, soybean milk machine, coffee maker
4.Burning machine, dishwasher, sterilizer,washing machine
5.Automotive temperature control system, medical equipment, new temperature measurement, communication equipment
Parameter Characteristics：
1.Thermal reaction time: ≤10 seconds in water bath
2.Dissipation factor: about 2.6mW/℃ in standing air
3.Withstand voltage test: AC 1300V 2mA 1 second, no flashover, breakdown and other abnormal phenomena in the steel ball
4.Insulation test:DC 500V ≥100MΩ
5.Rated power: ≤10mW
6.Operating temperature range：-40℃～180℃
Dimensions：
Ordering Instructions：
Please inform the following parameters when ordering NTC temperature sensor:
1. Resistance value requirements (can be selected according to the above table)
2. B value requirements (can be selected according to the above table)
3. Working environment (whether waterproof, moisture-proof, cold and other requirements )
4. Application: different usgae has different temperature resistant wire and different resistance value
5. Operating temperature range
6. Accuracy requirement (1%-5% optional)
7. Shell material (copper, brass, stainless steel, ABS, epoxy resin and so on)
8. Customized shell dimensions is welcome
9. Customized wire rod and length is welcome
10. If connectors are needed at the end of the wire(Molex, JST, CJT and others are optional).
We are professional manufacturer of NTC thermistors and temperature sensors. The products are including many parameters and specifications, please confim before ordering.
Customized parameters and dimensions is welcome.
RT table of conventional resistance values：
