Features:
1.High accuracy, good consistency and interchangeable both resistance value and B value
2.Good insulation, high reliability, quick response
3.Adopted double-layer sealing process with good insulation sealing, mechanical impact resistance, bending resistance and high reliability
4.Can work stably for a long time (annual resistance drift rate ≤1‰)
5.Can be encapsulated according to the installation conditions used
Applications:
1. Air conditioner
2. Heating equipment, medical devices
3. Thermostat
4. Electronic thermohygrometer
5. Automotive temperature measurement, household appliances, computers
6. Electronic calendar and rechargeable battery pack
7. Wireless chargers, laptop batteries, LED showers
8. Power supplies, adapters, LED power supplies, LED drivers
9. Beauty products, digital devices
10. Lithium batteries, switches, fans
11. Desktop computer exhaust fans and alarms
Product Parameter Characteristics:
1. Thermal reaction time: ≤16 seconds in water bath
2. Dissipation factor: about 2.6mW/℃ in standing air
3. Withstand voltage test: AC 1800V 2mA for 3s
4. Insulation test: ≥100MΩ
5. Rated power: ≤10mW
6. Working temperature range: -20°C～105°C
| NO. | Material | Material Specification |

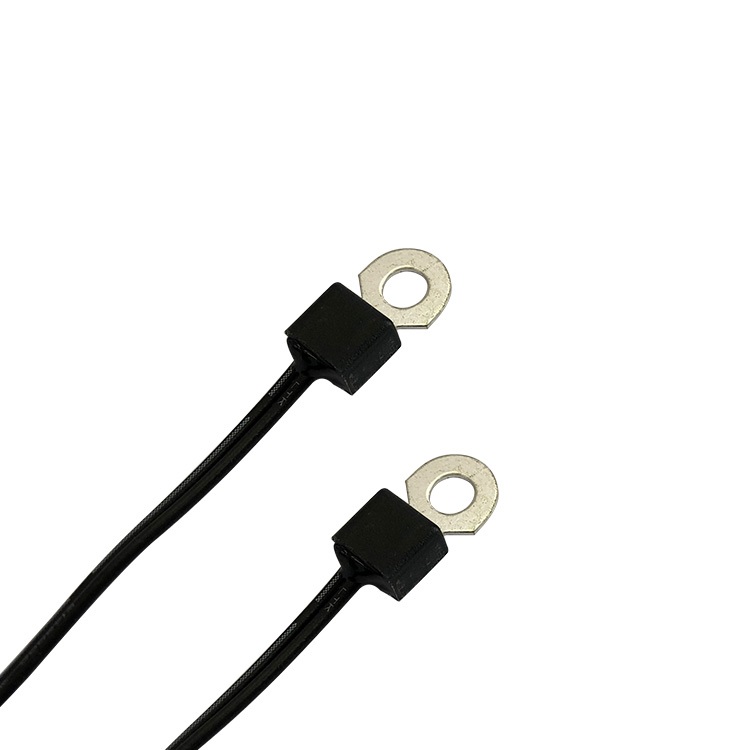

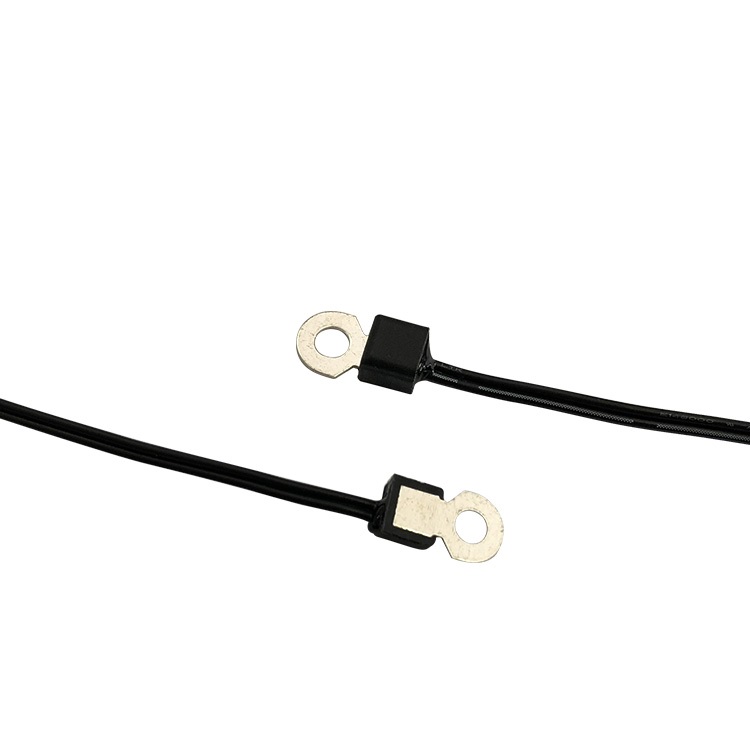

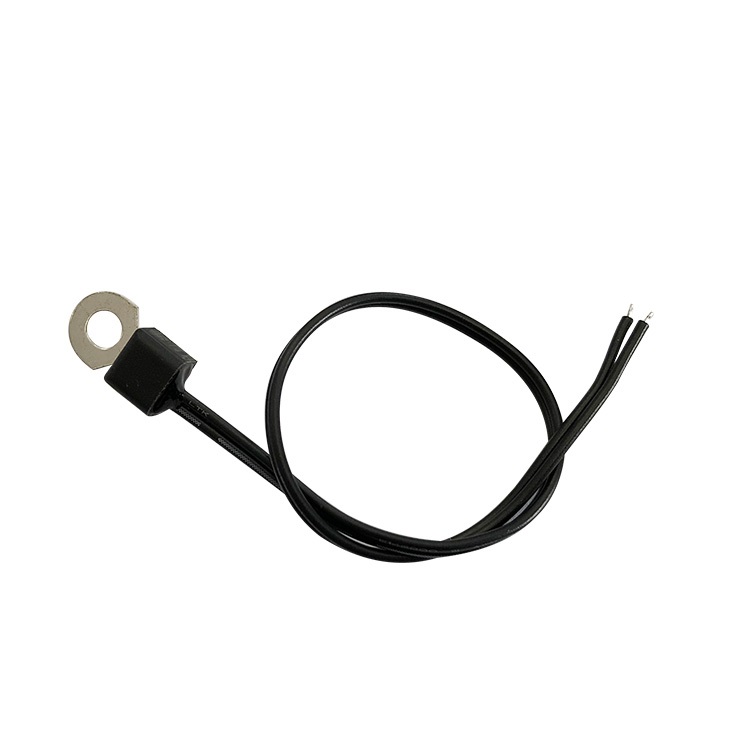

| 1 | Shell | 4*5.8*6.4*13.2 rubber coated terminal |
| 2 | Resistance Value | R25=100KΩ±1% B(25/50)=4150K±1% |
| 3 | Lead wire | UL2651#28AWG Black |
Dimensions:
Ordering instructions：
When ordering an NTC temperature sensor, please inform the following parameters:
1. Resistance value requirements (can be selected according to the above table)
2. B value requirements (can be selected according to the table above)
3. Working environment (whether waterproof, moisture-proof, cold-resistant and other requirements)
4. Application: There are temperature-resistant lines for different purposes, and the resistance values are different
5, the operating temperature range
6. Precision requirements (1%-5% optional)
7. Housing material (copper, brass, stainless steel, ABS, epoxy resin, etc.)
8. Customized shell size is welcome
9. Welcome to customize the wire and length
10. If the wire end needs a connector (optional Molex, JST, CJT, etc.).
RT table of conventional resistance values：
