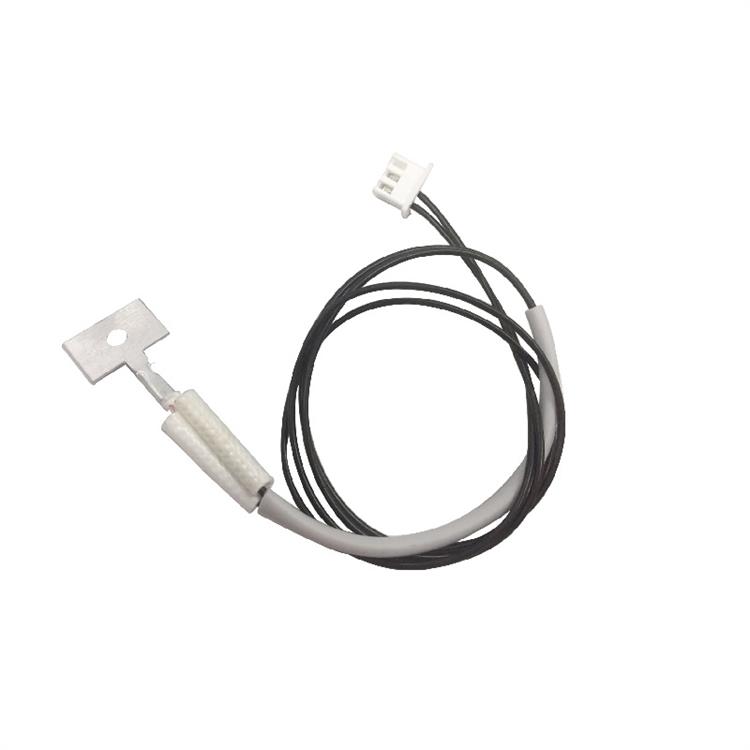

High temperature teflon wire temperature sensor thermistor for oven

Features:

1. High temperature resistant

2. Glass encapsulated thermistor

3. High temperature Teflon wire

4. Excellent stability

5.High reliability

6. Various parameters and sizes are welcome to be customized.

7. Working temperature range: -40°C～250°C

Applications:

1. The oven

2. Microwave

3. High temperature resistance

4. Smart appliances

Product Parameters:

1. Thermal response time: ≤ 16 seconds in water bath

2. Dissipation factor: about 2.6mW/℃ in standing air

3. Withstand voltage test: AC 2100V 2mA for 1s

4. Insulation test: ≥ 100MΩ

5, rated power: ≤ 10mW

Dimensions:

Ordering Instructions：

Please inform the following parameters when ordering NTC temperature sensor:

1. Resistance value requirements (can be selected according to the above table)

2. B value requirements (can be selected according to the above table)

3. Working environment (whether waterproof, moisture-proof, cold-resistant and other requirements)

4. Application: Different wires have different temperature resistance and different resistance values.

5. Working Temperature Range

6. Accuracy requirements (1%-5% optional)

7. Housing material (copper, brass, stainless steel, ABS, epoxy resin, etc.)

8. Customized case size is welcome

9. Welcome to custom wire and length

10. If a connector is required at the end of the wire (Molex, JST, CJT, etc. optional).

We are professional manufacturer of NTC thermistor and temperature sensor. Products involved

There are many parameters and specifications, please confirm before placing an order.

R-t table of conventional resistance values:
