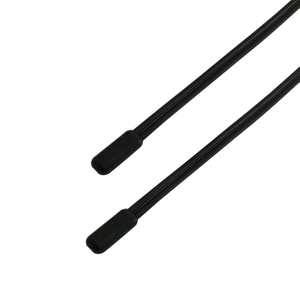

High reliability NTC thermistor for power car inverter

Features:

1. Wide temperature range: 1KΩ~500KΩ

2. High thermal conductivity

3. High reliability

4. Good insulation

5. High reliability

6. Stable performance

7. Accept customization

8. Can work stably for a long time (annual resistance drift rate ≤ 1%)

9. It can be packaged according to the installation conditions used.

10. TPE resin and TPE wire are integrated, good waterproof

Applications:

1. Car oil and water temperature

2. Household appliances

3. Rice Cookers

4. The heater

5. Soy milk maker

6. Coffee Maker

7. The burner

8. The dishwasher

9. Disinfection machine

10. Washing Machines

11. Car temperature control system

12. Medical Devices

13. Communication Equipment

14. Power car inverter

Product Features:

1. Thermal response time: ≤16 seconds in water bath

2. Dissipation factor: about 2.6mW/℃ in standing air

3. Withstand voltage test: AC 1800V 2mA for 1s

4. Insulation test: DC 500V ≥ 100MΩ

5. Rated power: ≤ 10mW

6. Working temperature range: -40°C～150°C

Ordering instructions：
Please inform the following parameters when ordering NTC temperature sensor:
1、Resistance value requirements (can be selected according to the above table)
2、B value requirements (can be selected according to the above table)
3、Working environment (whether waterproof, moisture-proof, cold and other requirements )
4、Application: different  usgae has temperature resistant wire and different resistance value
5、Operating temperature range
6、Accuracy requirement (1%-5% optional)
7、Shell material (copper, brass, stainless steel, ABS, epoxy resin and so on)
8、Customized shell dimensions is welcome
9、Customized wire rod and length is welcome
10、If connectors are needed at the end of the wire(Molex, JST, CJT and others are optional).
We are professional manufacturer of NTC thermistors and temperature sensors. The products are including many parameters and specifications, please confirm before place an order.


RT table of conventional resistance values：
