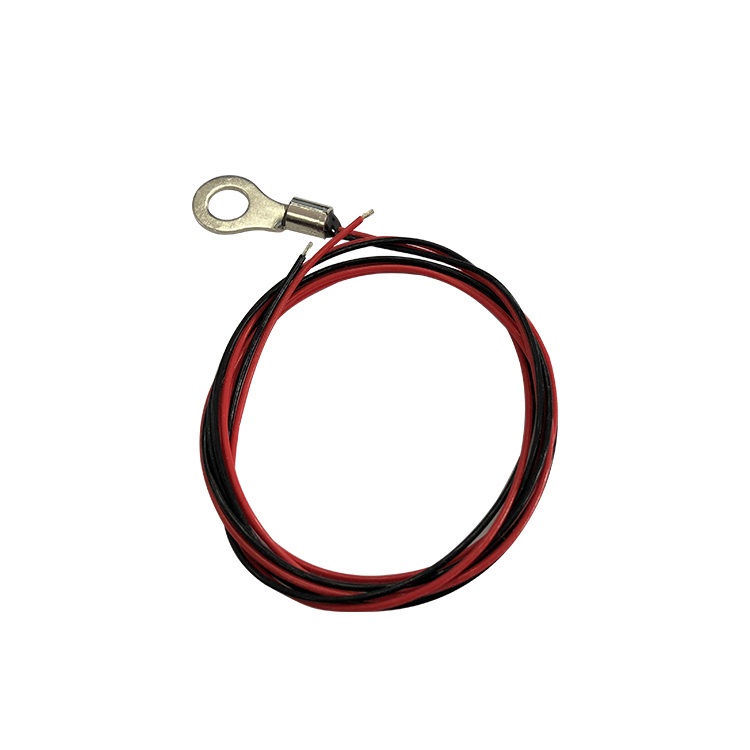

High heat resistance fast response ring terminal temperature sensor

Features:

1. High heat resistance

2. Fast response speed

3. Wide temperature range

4. Use double-layer sealing

5. Good insulation and sealing performance

6. Good resistance to mechanical shock

7. Good resistance to bending

8. Welcome to customize all kinds of ring terminal sizes

9.Easy assembly

Applications:

1. Vehicle charging pile

2. Car Charger

3. Vehicle frequency converter

4. Heat Pump Water Heaters

5. Heat absorber

6. Temperature test of the rice cooking plate

7. Automobile brake temperature test

Parameters Characteristics：

1. Thermal response time: ≤16 seconds in water bath

2. Dissipation factor: about 2.8mW/℃ in standing air

3. Withstand voltage test: AC 1800V 2mA for 1s

4. Insulation test: DC 500V ≥ 100MΩ

5. Rated power: ≤ 10mW

6. Working temperature range: -30°C～200°C

Dimensions:

Ordering information:

When ordering an NTC temperature sensor, please inform the following parameters:

1. Resistance value requirements (can be selected according to the above table)

2. B value requirements (can be selected according to the table above)

3. Working environment (whether it is waterproof, moisture-proof, cold-resistant, etc.)

4. Application: Different wires have different temperature resistance and different resistance values.

5. Working Temperature Range

6. Precision requirements (1%-5% optional)

7. Shell material (copper, brass, stainless steel, ABS, epoxy resin, etc.)

8. Customized case size is welcome

9. Welcome to custom wire and length

10. If the end of the wire requires a connector (Molex, JST, CJT, etc. optional).

We are a professional manufacturer of NTC thermistors and temperature sensors. product includes many

For parameters and specifications, please confirm before ordering. Customized parameters are welcomed.

RT table of conventional resistance values：
