Features:

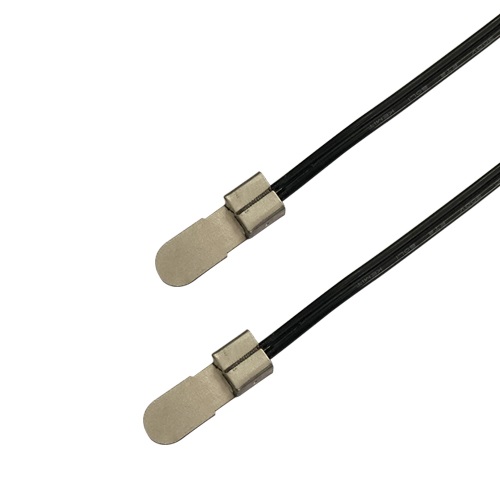

1.Nickel shell ring head NTC thermistor temperature sensor
2.Wide resistance range:1KΩ~500KΩ
3.High accuracy, good consistency and interchangeable both resistance value and B value
4.Good insulation, high reliability, quick response
5.Adopted double-layer sealing process with good insulation sealing, mechanical impact resistance, bending resistance and high reliability
6.Can work stably for a long time (annual resistance drift rate ≤1‰)
7.Can be encapsulated according to the installation conditions used
8.Operating temperature range:-40~150℃
Applications:
1.Automobile charging pile,new energy vehicles
2.Power protection,inverter ,surface temperature test
3.BMS battery system temperature measurement
4.Charging equipment,electrical machinery
5.New energy vehicle battery pack
Product Parameters:
Dimensions:
Optional Conventional Model Parameters:
Ordering instructions：
Please inform the following parameters when ordering NTC temperature sensor:
1、Resistance value requirements (can be selected according to the above table)
2、B value requirements (can be selected according to the above table)
3、Working environment (whether waterproof, moisture-proof, cold and other requirements )
4、Application: different usgae has temperature resistant wire and different resistance value
5、Operating temperature range
6、Accuracy requirement (1%-5% optional)
7、Shell material (copper, brass, stainless steel, ABS, epoxy resin and so on)
8、Customized shell dimensions is welcome
9、Customized wire rod and length is welcome
10、If connectors are needed at the end of the wire(Molex, JST, CJT and others are optional).
We are professional manufacturer of NTC thermistors and temperature sensors. The products are including many parameters and specifications,
please confirm before place an order.
RT table of conventional resistance values：
