Features:

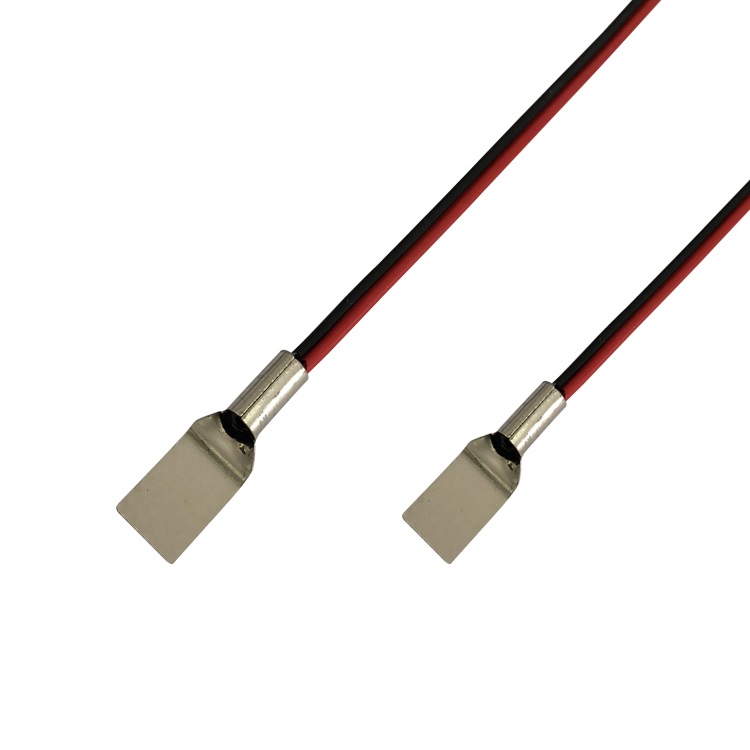

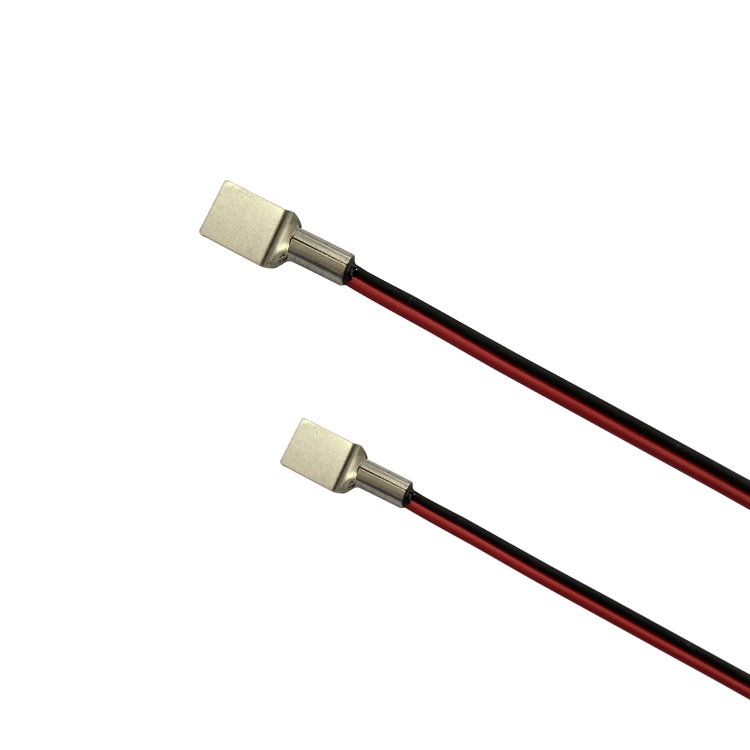

1.NTC thermistor temperature sensor
2.Wide range resistance:1kΩ to 500kΩ
3.High accuracy, good consistency and interchangeable resistance both value and B value
4.Good insulation, high reliability, quick response
5.Adopted double-layer sealing process with good insulation sealing, anti-mechanical impact, anti-bending ability and high reliability.
6.Can work stably for a long time (annual resistance drift rate ≤1‰)
7.Can be packaged according to the installation conditions
8.Operating temperature range :-40~180℃
Applications:
1.Automobile, electric vehicle, new energy vehicle (battery, electric control, motor, charging gun)
2.Combustion machine, dishwasher, disinfecting machine, washing machine, automobile temperature control system,
medical equipment, new temperature measurement, communication equipment
3.Printer, copier, motor, computer, optical communication module temperature control, industrial automation equipment,
temperature control instrument microwave oven
4.Temperature measurement in granary, refrigerator, air conditioner, electric water heater, freezer, cell phone battery,
charger, induction cooker, toaster, disinfection cabinet
5.Electric oven, fire alarm, food storage, ocean, deep well, glacier temperature measurement, military industry and other fields.
Dimensions:
Product Characteristic Parameters:
1.Thermal reaction time: ≤16 seconds in water bath
2.Dissipation factor: about 2.6mW/℃ in standing air
3.Withstand voltage test: 2mA 1 second, no flashover, breakdown and other abnormal phenomena in the steel ball
4.Insulation test: 100 m Ω, steel ball ≥100MΩ
5.Rated power: ≤10mW
6.Operating temperature range：-30℃ ~ 125℃
Ordering instructions：
Please inform the following parameters when ordering NTC temperature sensor:
1、Resistance value requirements (can be selected according to the above table)
2、B value requirements (can be selected according to the above table)
3、Working environment (whether waterproof, moisture-proof, cold and other requirements )
4、Application: different usgae has temperature resistant wire and different resistance value
5、Operating temperature range
6、Accuracy requirement (1%-5% optional)
7、Shell material (copper, brass, stainless steel, ABS, epoxy resin and so on)
8、Customized shell dimensions is welcome
9、Customized wire rod and length is welcome
10、If connectors are needed at the end of the wire(Molex, JST, CJT and others are optional)
We are professional manufacturer of NTC thermistors and temperature sensors. The products are including many parameters and specifications,
please confirm before place an order.
RT table of conventional resistance values：
