Features:

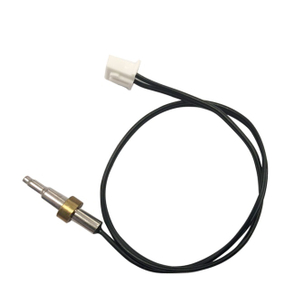

1.Thread head metal case NTC temperature sensor
2.Good waterproof grade
3.Fast thermal reaction
4.Good reliability performance
5.Mass production and cost-effective
Applications:
1.Chiller (Medical Equipment)
2.Temperature control and monitoring of induction cooker, electric pressure cooker, electric rice cooker,
electric oven, disinfection cabinet, water dispenser, microwave oven, electric heating stove
3.Temperature control and testing for Industrial, medical, environmental protection, meteorological, food processing equipment.
Dimensions:
Parameters Characteristics：
1.Thermal reaction time：≤16 seconeds in water bath
2.Dissipation factor: about 2.0mW/℃ in standing air
3.Withstand voltage test：2mA 1 second
4. Insulation test：≥100MΩ
5. Rated power：≤5mW
6. Operating temperture range：-30℃～105℃
Ordering Instructions：
Please inform the following parameters when ordering NTC temperature sensor:
1、Resistance value requirements (can be selected according to the above table)
2、B value requirements (can be selected according to the above table)
3、Working environment (whether waterproof, moisture-proof, cold and other requirements )
4. Application: different usgae has different temperature resistant wire and different resistance value
5. Operating temperature range
6. Accuracy requirement (1%-5% optional)
7. Shell material (copper, brass, stainless steel, ABS, epoxy resin and so on)
8. Customized shell dimensions is welcome
9. Customized wire rod and length is welcome
10. If connectors are needed at the end of the wire(Molex, JST, CJT and others are optional).
We are a professional manufacturer of NTC thermistors and temperature sensors. The products involve many parameters and specifications,
please confirm before place an order.
R-t table of conventional resistance values:
