Features:
1.Stable property,high reliability
2.High-thermal conductivity
3.Good water proofing property
4.Fast reaction
5.High sensitivity
6.High precision both resistance value and B value, good consistency and interchangeability
7.Accept customization
Applications:
1.Coffee maker,smart toilet
2.Microwave oven, air conditioner, frequency converter, induction cooker
3.Heater, freezer, water dispenser, disinfection cabinet, washing machine, soybean milk machine
4.Rice cooker, oven, electric car, soybean milk machine
Parameter Characteristics:
1.Thermal reaction time: ≤3 seconds in water bath
2.Dissipation factor: about 1.3mW/℃ in standing air
3.Withstand voltage test: 2mA 1 second, no flashover, breakdown and other abnormal phenomena in the steel ball
4.Insulation test:≥100MΩ
5.Rated power：≤5mW
6.Operating temperature range：-20℃～105℃
Dimensions:
Ordering Instructions：

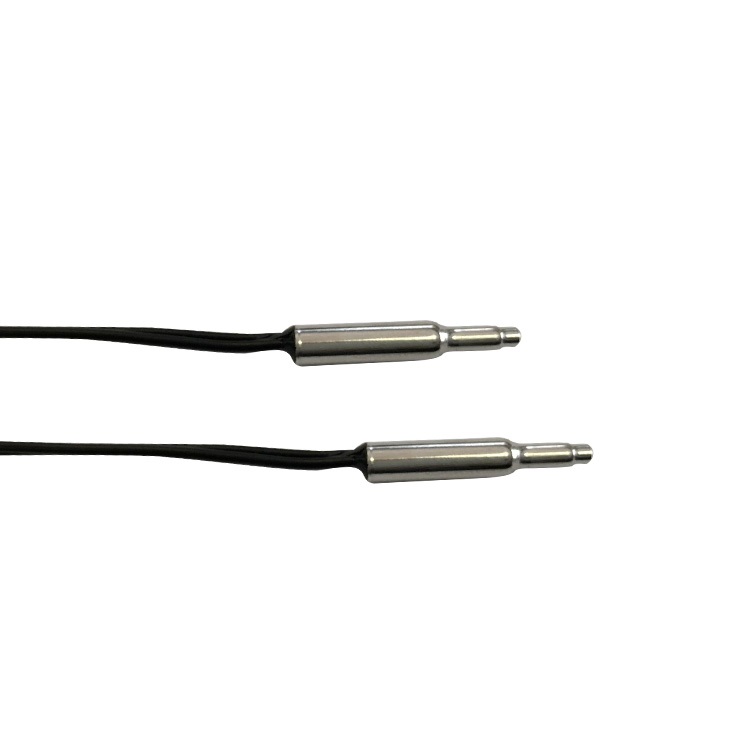

Please inform the following parameters when ordering NTC temperature sensor:
1、Resistance value requirements (can be selected according to the above table)
2、B value requirements (can be selected according to the above table)
3、Working environment (whether waterproof, moisture-proof, cold and other requirements )
4、Application: different usgae has different temperature resistant wire and different resistance value
5、Operating temperature range
6、Accuracy requirement (1%-5% optional)
7、Shell material (copper, brass, stainless steel, ABS, epoxy resin and so on)
8、Customized shell dimensions is welcome
9、Customized wire rod and length is welcome
10、If connectors are needed at the end of the wire(Molex, JST, CJT and others are optional).
We are a professional manufacturer of NTC thermistors and temperature sensors. The products involve
many parameters and specifications, please confirm before place an order.
RT table of conventional resistance values：
